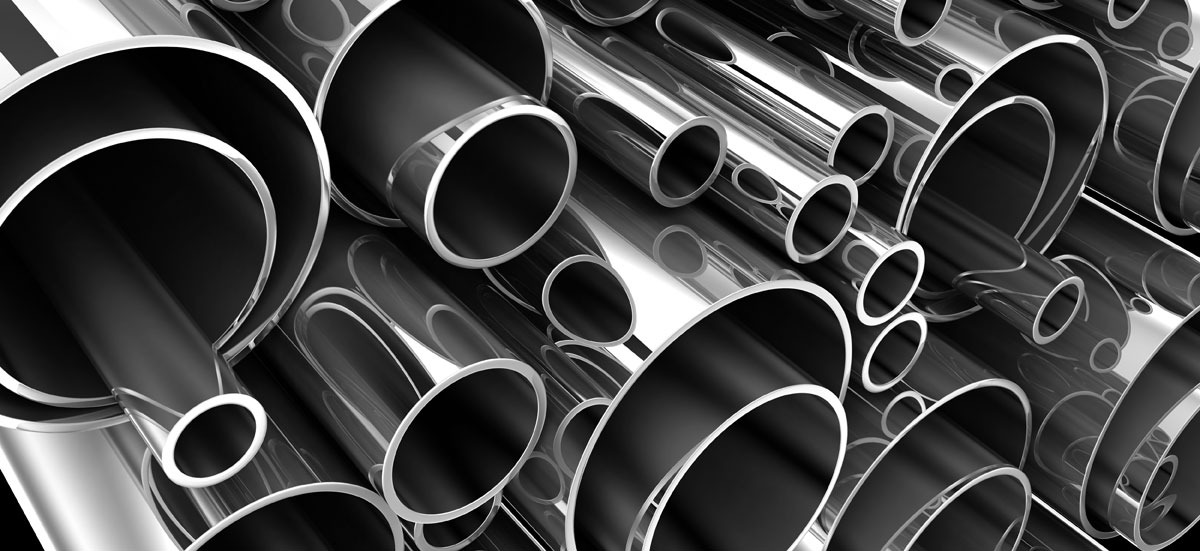

Stainless Pipe Dimensions and Weight Table
ASTM-A269 stainless pipe dimensions given below are metric dimensions and suitable for DIN-2353 normed metric ring fittings. When selecting the pipe size for your system, please consider the system pressure and the temperature of the system. Seamless pipes are resistant to higher pressures than welded pipes. All stainless steel pipes in our stocks are 316L quality seamless pipes according to ASTM-A269 standards.
Click here for stainless steel pressure table .
Click here for pipe sizes not listed.
| Product Code | Outer Diameter/mm | Wall Thickness/mm | Inner Diameter/mm | Weight Mt/kg |
| 6mm Stainless Steel Pipe | 6 mm | 1 mm | 4 mm | ~0,123 kg |
| 6mm Stainless Steel Pipe | 6 mm | 1,5 mm | 3 mm | ~0,166 kg |
| 8mm Stainless Steel Pipe | 8 mm | 1 mm | 6 mm | ~0,173 kg |
| 8mm Stainless Steel Pipe | 8 mm | 1,5 mm | 5 mm | ~0,240 kg |
| 10mm Stainless Steel Pipe | 10 mm | 1 mm | 8 mm | ~0,222 kg |
| 10mm Stainless Steel Pipe | 10 mm | 1,5 mm | 7 mm | ~0,320 kg |
| 10mm Stainless Steel Pipe | 10 mm | 2 mm | 6 mm | ~0,400 kg |
| 12mm Stainless Steel Pipe | 12 mm | 1 mm | 10 mm | ~0,270 kg |
| 12mm Stainless Steel Pipe | 12 mm | 1,5 mm | 9 mm | ~0,390 kg |
| 12mm Stainless Steel Pipe | 12 mm | 2 mm | 8 mm | ~0,500 kg |
| 14mm Stainless Steel Pipe | 14 mm | 1,5 mm | 11 mm | ~0,470 kg |
| 14mm Stainless Steel Pipe | 14 mm | 2 mm | 10 mm | ~0,600 kg |
| 14mm Stainless Steel Pipe | 14 mm | 2,5 mm | 10 mm | ~0,720 kg |
| 16mm Stainless Steel Pipe | 16 mm | 1,5 mm | 13 mm | ~0,540 kg |
| 16mm Stainless Steel Pipe | 16 mm | 2 mm | 12 mm | ~0,700 kg |
| 16mm Stainless Steel Pipe | 16 mm | 2,5 mm | 11 mm | ~0,840 kg |
| 18mm Stainless Steel Pipe | 18 mm | 1,5 mm | 15 mm | ~0,620 kg |
| 18mm Stainless Steel Pipe | 18 mm | 2 mm | 14 mm | ~0,800 kg |
| 18mm Stainless Steel Pipe | 18 mm | 2,5 mm | 13 mm | ~0,970 kg |
| Product Code | Outer Diameter/mm | Wall Thickness/mm | Inner Diameter/mm | Weight Mt/kg |
| 20mm Stainless Steel Pipe | 20 mm | 2 mm | 16 mm | ~0,900 kg |
| 20mm Stainless Steel Pipe | 20 mm | 2,5 mm | 15 mm | ~1,100 kg |
| 20mm Stainless Steel Pipe | 20 mm | 3 mm | 14 mm | ~1,270 kg |
| 22mm Stainless Steel Pipe | 22 mm | 2 mm | 18 mm | ~1,000 kg |
| 22mm Stainless Steel Pipe | 22 mm | 2,5 mm | 17 mm | ~1,220 kg |
| 25mm Stainless Steel Pipe | 25 mm | 2,5 mm | 20 mm | ~1,410 kg |
| 25mm Stainless Steel Pipe | 25 mm | 3 mm | 19 mm | ~1,650 kg |
| 28mm Stainless Steel Pipe | 28 mm | 2 mm | 24 mm | ~1,300 kg |
| 28mm Stainless Steel Pipe | 28 mm | 3 mm | 22 mm | ~1,870 kg |
| 30mm Stainless Steel Pipe | 30 mm | 3 mm | 24 mm | ~2,000 kg |
| 30mm Stainless Steel Pipe | 30 mm | 4 mm | 22 mm | ~2,600 kg |
| 35mm Stainless Steel Pipe | 35 mm | 3 mm | 29 mm | ~2,400 kg |
| 35mm Stainless Steel Pipe | 35 mm | 4 mm | 27 mm | ~3,100 kg |
| 38mm Stainless Steel Pipe | 38 mm | 4 mm | 30 mm | ~3,400 kg |
| 38mm Stainless Steel Pipe | 38 mm | 5 mm | 28 mm | ~4,120 kg |
| 38mm Stainless Steel Pipe | 38 mm | 6 mm | 26 mm | ~4,800 kg |
| 42mm Stainless Steel Pipe | 42 mm | 3 mm | 36 mm | ~2,920 kg |
| 42mm Stainless Steel Pipe | 42 mm | 3,5 mm | 35 mm | ~3,370 kg |
| 42mm Stainless Steel Pipe | 42 mm | 4 mm | 34 mm | ~3,800 kg |
