Description

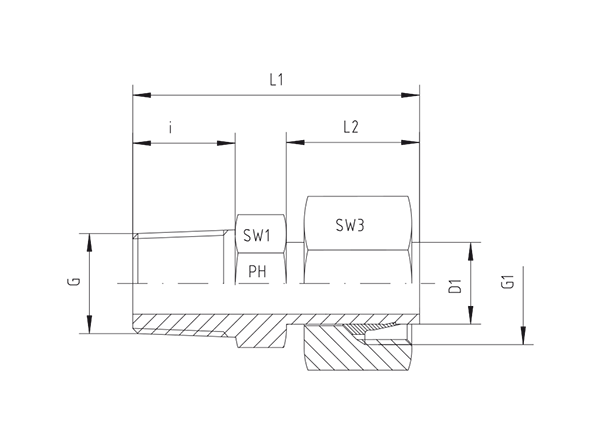

Stainless Swivel NPT Fittings
| Basınç Pressure | Paslanmaz Boru Çapı Tube Diameter | Diş / Thread | Ürün Kodu Product code | Fiyat Price € | |
| PN | D1 | G | G1 | ||
| L Serısı / Serıes | |||||
| 315 | 6 | 1/8″ NPT | M 12 x 1,5 | EVGE-L-06-1/8″-NPT | 11.12 € |
| 315 | 6 | 1/4″ NPT | M 12 x 1,5 | EVGE-L-06-1/4″-NPT | 12.48 € |
| 315 | 8 | 1/4″ NPT | M 14 x 1,5 | EVGE-L-08-1/4″-NPT | 12.48 € |
| 315 | 10 | 1/4″ NPT | M 16 x 1,5 | EVGE-L-10-1/4″-NPT | 13.68 € |
| 315 | 12 | 1/4″ NPT | M 18 x 1,5 | EVGE-L-12-1/4″-NPT | 15.31 € |
| 315 | 12 | 3/8″ NPT | M 18 x 1,5 | EVGE-L-12-3/8″-NPT | 16.77 € |
| 315 | 12 | 1/2″ NPT | M 18 x 1,5 | EVGE-L-12-1/2″-NPT | 17.00 € |
| 315 | 15 | 3/8″ NPT | M 22 x 1,5 | EVGE-L-15-3/8″-NPT | 18.36 € |
| 315 | 15 | 1/2″ NPT | M 22 x 1,5 | EVGE-L-15-1/2″-NPT | 22.68 € |
| 315 | 18 | 1/2″ NPT | M 26 x 1,5 | EVGE-L-18-1/2″-NPT | 35.69 € |
| 160 | 22 | 3/4″ NPT | M 30 x 2 | EVGE-L-22-3/4″-NPT | 43.82 € |
| 160 | 28 | 1″ NPT | M 36 x 2 | EVGE-L-28-1″-NPT | 69.03 € |
| 160 | 35 | 1 1/4″ NPT | M 45 x 2 | EVGE-L-35-1 1/4″-NPT | 115.04 € |
| 160 | 42 | 1 1/2″ NPT | M 52 x 2 | EVGE-L-42-1 1/2″-NPT | 125.27 € |
| S Serısı / Serıes | |||||
| 630 | 6 | 1/4″ NPT | M 14 x 1,5 | EVGE-S-06-1/4″-NPT | 13.65 € |
| 630 | 8 | 1/4″ NPT | M 16 x 1,5 | EVGE-S-08-1/4″-NPT | 14.32 € |
| 630 | 10 | 1/4″ NPT | M 18 x 1,5 | EVGE-S-10-1/4″-NPT | 15.26 € |
| 630 | 10 | 3/8″ NPT | M 18 x 1,5 | EVGE-S-10-3/8″-NPT | 17.13 € |
| 630 | 12 | 1/4″ NPT | M 20 x 1,5 | EVGE-S-12-1/4″-NPT | 20.30 € |
| 630 | 12 | 3/8″ NPT | M 20 x 1,5 | EVGE-S-12-3/8″-NPT | 21.32 € |
| 630 | 12 | 1/2″ NPT | M 20 x 1,5 | EVGE-S-12-1/2″-NPT | 23.11 € |
| 630 | 14 | 1/2″ NPT | M 22 x 1,5 | EVGE-S-14-1/2″-NPT | 25.67 € |
| 400 | 16 | 1/2″ NPT | M 24 x 1,5 | EVGE-S-16-1/2″-NPT | 36.92 € |
| 400 | 20 | 3/4″ NPT | M 30 x 2 | EVGE-S-20-3/4″-NPT | 47.22 € |
| 400 | 25 | 1″ NPT | M 36 x 2 | EVGE-S-25-1″-NPT | 76.18 € |
| 400 | 30 | 1 1/4″ NPT | M 42 x 2 | EVGE-S-30-1 1/4″-NPT | 125.27 € |
| 315 | 38 | 1 1/2″ NPT | M 52 x 2 | EVGE-S-38-1 1/2″-NPT | 136.52 € |
