10×1 mm Stainless Steel Pipe – Hydraulic Pipe – Seamless Pipe

10×1 mm Stainless Steel Pipe – Hydraulic Pipe – Seamless Pipe

','

'); } ?>


10×1 mm Stainless Steel Pipe – Hydraulic Pipe – Seamless Pipe

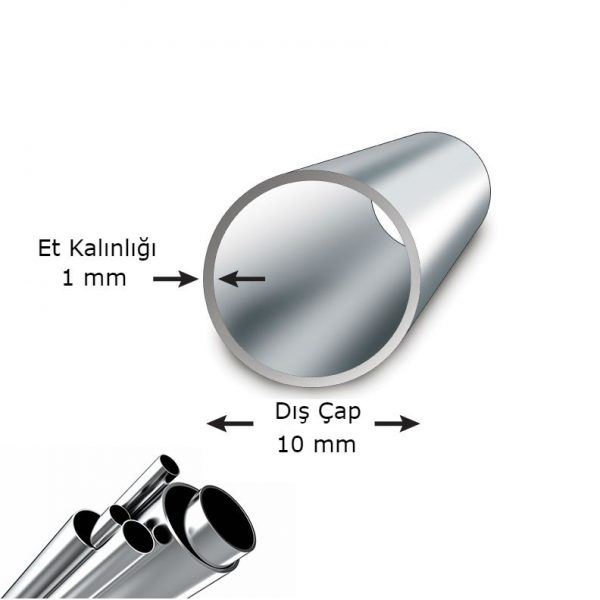

ASTM-A269 stainless steel pipe is made of 316L stainless steel seamless. The outer diameter of the pipe is 10 mm, the wall thickness is 1 mm and the length is 6 meters. ASTM-A269 10 × 1 mm stainless pipe is generally used in hydraulic systems. Safe  working pressure of 10x1mm stainless hydraulic pipe is 297 bar and burst pressure is 1178 bar .

Please contact us for stainless pipe prices .

Note: The values ​​given are approximate. The pressure range may vary depending on the ambient conditions.

Description

ASTM-A269 Stainless Pipe Properties

ASTM (American Society for Testing and Materials) has also set several standards in the pipe industry and ASTM-A269 is one of them. Although chemical properties, nominal outside diameter and wall thickness are the same with some standards, they are basically pipes with different physical properties. Stainless steel pipes in our stocks are produced in accordance with DIN-2353 standard connection elements. Incompatible pipes and connections will cause the system to malfunction, causing pressure drops and leaks. By our customers, hydraulic 10 × 1mm Stainless pipe is generally used by welding and ringing method.

Although small differences in pipe diameters, especially at different standards, can cause imperceptible problems at low pressures, they can cause major problems in systems at high pressures. These problems can cause loss of life and property. For example; if you want to get high pressure by using ASTM-A312 seamless pipe and ring fittings instead of ASTM-A269 seamless pipe in your hydraulic system, this system can cause you heavy cost loss. Since the tolerances of the ring and hydraulic pipe do not match, the ring cannot tighten the pipe at the desired rate, which causes oil leakage.

Quality316 L Paslanmaz Çelik 1.4404
StandardASTM-A269
Pipe TypeSeamless pipe
Production TypeCold Drawing
Suitable Connection NormDIN-2353

316L Stainless Pipe General Properties

AISI 316L (EN 1.4404) belongs to the austenitic group. 316L 10x1mm stainless pipes have high corrosion resistance and mechanical values ​​and contain less carbon than AISI 316 (EN 1.4401) quality. Therefore, machining ability, welding property and corrosion resistance are higher. It is used in ship industry, petro-chemistry, chemical military equipment and food industries. 316L stainless steel hydraulic pipes are widely used in many developing and changing sectors. It is very economical in the long term and reduces system costs.

  • Resistant to corrosion,
  • Aesthetics,
  • Resistant to heat and pressure,
  • Long Term Costs are Low
  • Fully Recyclable
  • Ease of production and cleaning

Paslanmaz Boru Kullanım Alanları

Boruların birçok standardı ve farklı tipleri olsa da en başta paslanmaz çelik ve normal çelik olarak iki ana başlık altında inceleyebiliriz. Kullanım alanlarına baktığımızda, normal çelik boru yerine paslanmaz çelik borular çok rahat kullanılabilir fakat paslanmaz boru kullanılması gereken bir sistemde normal çelik boru kullanamazsınız.

Paslanmaz borular daha çok petro-kimya, barajlar, gıda endüstrisi, gemi sanayi, savunma sanayi, demir-çelik sektörü,rafineri, kağıt fabrikaları gibi bir çok alanda sistemsel olarak paslanmaz çelikten ürünler kullanılmaktadır.

10x1mm Stainless Pipe Temperature-Pressure Values
Outer DiameterWall ThicknessWeightInner diameterPressure
10 mm1 mm0,22 kg/m8 mm297 Bar
